scShardSplitRef

scShardSplitRef designed for researchers working with multiome single-cell data from species that require building a custom reference genome, particularly when one or more chromosomes/contigs in the reference FASTA exceed the Cell Ranger ARC limit of 536.8Mb (2^29 bases). scShardSplitRef enables splitting of long chromosomes/contigs generating shorter fragments that are compitable with Cell Ranger ARC requirements. The scShardSplitRef package outputs GTF file containing the split chromosomes/contigs, which can be directly processed by cellranger-arc mkref. We also provide guidance on how to split a FASTA file used by cellranger-arc mkref using bedtools.

To familiarise yourself with the package and the workflow for preparing reference genome sequence (FASTA) and gene annotation (GTF) files for Cell Ranger ARC, we suggest starting with the algorithm description and a guided walk through.

Problem Overview

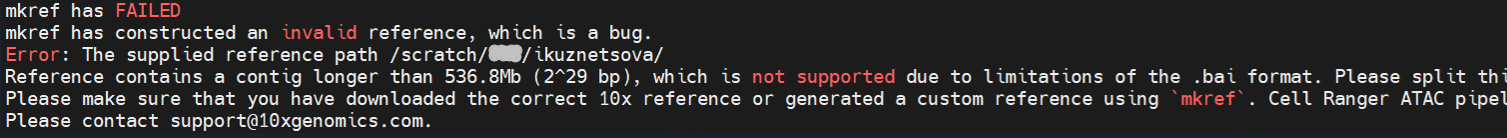

Cell Ranger provides pre-built reference genomes for common species such as human and mouse. For less common species, users must build a custom reference. For example, for multiome ATAC + Gene Expression sequencing data, the command is cellranger-arc mkref that requires a genome sequence (FASTA) and gene annotation (GTF) files. When working with species that have very large chromosomes or scaffolds, users may encounter the following error:
>Due to limitations of the BAM index format, a contig in the reference FASTA file cannot exceed 536.8 Mb (2^29 bases). If a contig exceeds that size you will have to split it into smaller contigs and make corresponding modifications to the GTF file. Source: 10x Genomics Documentation

For example, the barley genome has several chromosomes (2H = 665.59 Mb, 3H = 621.52 Mb, 4H = 610.33 Mb, 5H = 588.22 Mb, 6H = 561.79 Mb, 7H = 632.54 Mb) that exceed this size limit. As a result, cellranger-arc mkref cannot build a reference unless the oversized chromosomes are divided into smaller fragments.

scShardSplitRef

Prerequisites

Installation

library("scShardSplitRef")
library("knitr") # used for a kable table later in the document

Input Files

(x1) Note1: If centromere coordinates are not available for your species, the second column of the BED-like file should be set to 0. If centromere coordinates are available, the second column should be set to the centromere coordinate. {scShardSplitRef} will then check for any overlaps with genic regions and generate the correct GTF file that is compitable with cellranger-arc mkref.

(x2) Note2: Please note that the FASTA file is not required for the package, but is used to demonstrate FASTA preparation for the Cell Ranger ARC command in the workflow description. It is not included in the repository due to the large file size; download from Ensembl.

# Gene annotations (GTF) file:
gtf_df <- read.table(
  file = "morex3_subset_1H_2H.gtf",
  header = FALSE,
  sep = "\t"
)
dim(gtf_df) ### 150638 x 9
gtf_df[1:10, ]

2H      IPK     gene    601169528       601171444       .       -       .       gene_id "HORVU.MOREX.r3.2HG0191020"; gene_source "IPK"; gene_biotype "protein_coding";
2H      IPK     transcript      601169528       601171444       .       -       .       gene_id "HORVU.MOREX.r3.2HG0191020"; transcript_id "HORVU.MOREX.r3.2HG0191020.1"; gene_source "IPK"; gene_biotype "protein_coding"; transcript_source "IPK"; transcript_biotype "protein_coding"; tag "Ensembl_canonical";
2H      IPK     exon    601169754       601171444       .       -       .       gene_id "HORVU.MOREX.r3.2HG0191020"; transcript_id "HORVU.MOREX.r3.2HG0191020.1"; exon_number "1"; gene_source "IPK"; gene_biotype "protein_coding"; transcript_source "IPK"; transcript_biotype "protein_coding"; exon_id "HORVU.MOREX.r3.2HG0191020.1-E1"; tag "Ensembl_canonical";
2H      IPK     CDS     601169754       601171444       .       -       0       gene_id "HORVU.MOREX.r3.2HG0191020"; transcript_id "HORVU.MOREX.r3.2HG0191020.1"; exon_number "1"; gene_source "IPK"; gene_biotype "protein_coding"; transcript_source "IPK"; transcript_biotype "protein_coding"; protein_id "HORVU.MOREX.r3.2HG0191020.1"; tag "Ensembl_canonical";
2H      IPK     start_codon     601171442       601171444       .       -       0       gene_id "HORVU.MOREX.r3.2HG0191020"; transcript_id "HORVU.MOREX.r3.2HG0191020.1"; exon_number "1"; gene_source "IPK"; gene_biotype "protein_coding"; transcript_source "IPK"; transcript_biotype "protein_coding"; tag "Ensembl_canonical";

# Manually formatted BED-like file:
centr_bed_df <- read.table(
  file = "morex3_subset_1H_2H.bed",
  header = FALSE,
  sep = "\t"
)
dim(centr_bed_df) ## 2 x 3
centr_bed_df[1:2, ]

1H      206486643       516505932      # <- The second column is `206486643` - the centromere coordinate obtained from the database
2H      301293086       665585731

Key Functions

?determine_split_regions
?process_gtf

Usage Guide

A step-by-step guide can be found in the vignettes: - Toy example (algorithm): a quick introduction to understand the split algorithm: vignette toy - Real-world example: subset barley (diploid, chromosome length exceeds allowed size) vignette quickstart

Note on parameter selection in determine_split_regions(). In real world scenarios users should consider picking clearance = 900 (2 x 150 bp reads with up to a 600 bp insert size), and shift_by in the region of 1000 to 4000 to ensure the algorithm can easily walk through a whole gene if needed.

Citation

Please cite this tool if you use it

library("scShardSplitRef")
citation("scShardSplitRef")

#> Warning in citation("scShardSplitRef"): could not determine year for 'scShardSplitRef'
#> from package DESCRIPTION file
#> To cite package 'scShardSplitRef' in publications use:
#>
#>   Kuznetsova I, Pembleton L, Curci L, Sparks A (????). _scShardSplitRef: Build
#>   Custom Reference Genome for Single-Cell Multiome ATAC and Gene Expression Data
#>   of Large-Genome Species._. R package version 0.1.0
#>
#> A BibTeX entry for LaTeX users is
#>
#>   @Manual{,
#>     title = {scShardSplitRef: Build Custom Reference Genome for Single-Cell Multiome ATAC and
#> Gene Expression Data of Large-Genome Species.},
#>     author = {Irina Kuznetsova and Luke Pembleton and Luca Curci and Adam H. Sparks},
#>     note = {R package version 0.1.0},
#>   }

License

This project is licensed under the GPL-3 license.

Contributing

Code of Conduct

Please note that the scShardSplitRef project is released with a Contributor Code of Conduct. By contributing to this project, you agree to abide by its terms. If you’d like to help improve this tool, please send your suggestions via email. Please clearly outline the feature(s) you think should be added. As the tool develops, new features can be added as separate package functions and contributed back to the project. Remember that improving tools is important, but keeping them neat and not over-complicated is just as essential.
